Philip Harris Electromagnet

Philip Harris Electromagnet

G1008303

Product code: G1008303

-
+

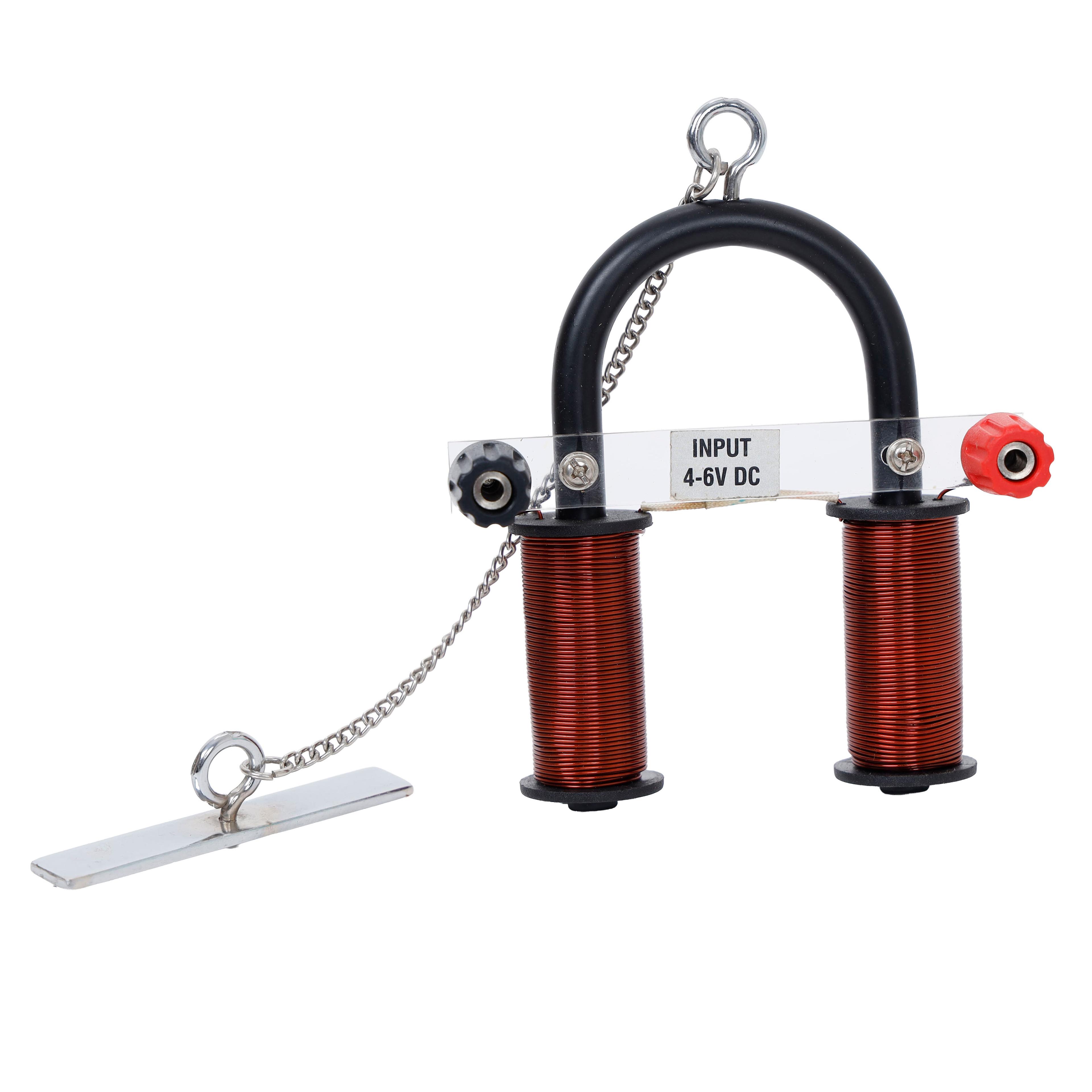

A powerful electromagnet comprising a 'U' shaped soft iron core 100mm x 65mm overall. Formed from a 16mm diameter bar. The windings are of 0.9mm enamelled copper wire wound on insulation bobbins, connected in series and provided with 4mm sockets.

The ends of the core are carefully ground to provide optimum magnetic contact with the armature, which is also ground flat.

Winding resistance is approximately 0.5Ω

A force of about 75N is required to pull the armature away from the core when 1A is flowing through the windings.

  • Recommended Current: 5A.
  • Maximum Current: 8A
  • Input Voltage: 4-6V
  • Key Stage 3 Physics - Electricity and Electromagnetism: The magnetic effect of a current, electromagnets, DC motors (principles only).
  • Key Stage 4 Physics – Forces: Forces and fields: electrostatic, magnetic, gravity.
  • Key Stage 4 Physics - Magnetism and Electromagnetism: Magnetism and electromagnetism.  Exploring the magnetic fields of permanent and induced magnets, and the Earth’s magnetic field, using a compass.  Magnetic effects of currents, how solenoids enhance the effect.

Further Information

Age Recommended from
11 Years
Brand
Philip Harris
Input Voltage
4 - 6V DC
Magnet Type
U-Shaped Electromagnet
Maximum Current
8A
Product Type
Electromagnet
Recommended Current
5A
-
+

A powerful electromagnet comprising a 'U' shaped soft iron core 100mm x 65mm overall. Formed from a 16mm diameter bar. The windings are of 0.9mm enamelled copper wire wound on insulation bobbins, connected in series and provided with 4mm sockets.

The ends of the core are carefully ground to provide optimum magnetic contact with the armature, which is also ground flat.

Winding resistance is approximately 0.5Ω

A force of about 75N is required to pull the armature away from the core when 1A is flowing through the windings.

  • Recommended Current: 5A.
  • Maximum Current: 8A
  • Input Voltage: 4-6V
  • Key Stage 3 Physics - Electricity and Electromagnetism: The magnetic effect of a current, electromagnets, DC motors (principles only).
  • Key Stage 4 Physics – Forces: Forces and fields: electrostatic, magnetic, gravity.
  • Key Stage 4 Physics - Magnetism and Electromagnetism: Magnetism and electromagnetism.  Exploring the magnetic fields of permanent and induced magnets, and the Earth’s magnetic field, using a compass.  Magnetic effects of currents, how solenoids enhance the effect.

Further Information

Age Recommended from
11 Years
Brand
Philip Harris
Input Voltage
4 - 6V DC
Magnet Type
U-Shaped Electromagnet
Maximum Current
8A
Product Type
Electromagnet
Recommended Current
5A
